Installation

Requirements

• Nuke 11.0 or later (tested up to Nuke 16)
• Python 2.7 (Nuke 11-12) or Python 3.x (Nuke 13+)
• Windows, macOS, or Linux

No external Python packages are required. Everything is self-contained.

Step 1 — Copy the folder

Copy the node_graph_tools folder into your .nuke directory:

Windows

C:\Users\<USER>\.nuke\node_graph_tools

macOS

/Users/<USER>/.nuke/node_graph_tools

Linux

/home/<USER>/.nuke/node_graph_tools

If the .nuke folder does not exist, create it in your home directory. On Windows you can also use the environment variable %USERPROFILE%\.nuke\.

Step 2 — Add to menu.py

Open (or create) the file menu.py inside your .nuke directory. Make sure import os, import sys and import nuke are at the top, then add:

# NELSIG NODE GRAPH TOOLS - Open Source Edition
ngt_path = os.path.join(os.path.expanduser('~'), '.nuke', 'node_graph_tools')
if os.path.exists(ngt_path) and ngt_path not in sys.path:
    sys.path.insert(0, ngt_path)

if nuke.GUI:
    try:
        import ngt_init
        from ngt_core.version import __version__
        print("=" * 60)
        print("NELSIG Node Graph Tools v{} loaded successfully!".format(__version__))
        print("=" * 60)
    except Exception as e:
        print("ERROR: Failed to load NELSIG Node Graph Tools: {}".format(e))
        import traceback
        traceback.print_exc()

This registers all tools, menus, and keyboard shortcuts automatically. On success, you will see the version banner in the Script Editor.

Step 3 — Restart Nuke

Close and re-open Nuke. The toolkit initializes during startup and will be ready to use immediately.

Verification

After restarting Nuke, confirm the installation was successful:

1. Script Editor — Look for [NELSIG] initialization messages in the Script Editor output pane. You should see a startup banner with the version number.
2. NELSIG menu — A new NELSIG menu should appear in the Nuke menu bar, listing all available tools.
3. Toolbar — The NELSIG toolbar icons should be visible in the Node Graph toolbar area.

Folder Structure

After installation your .nuke directory should look like this:

.nuke/
├── menu.py
└── node_graph_tools/
    ├── ngt_init.py
    ├── ngt_core/
    │   ├── version.py
    │   ├── styles.py
    │   ├── undo.py
    │   ├── log.py
    │   └── ...
    ├── tools/
    │   ├── color_picker.py
    │   ├── edit_similar.py
    │   ├── hotbox/
    │   ├── viewer_shelf/
    │   ├── node_finder/
    │   └── stamps_manager/
    ├── panels/
    │   └── color_panel/
    ├── icons/
    └── gizmos/

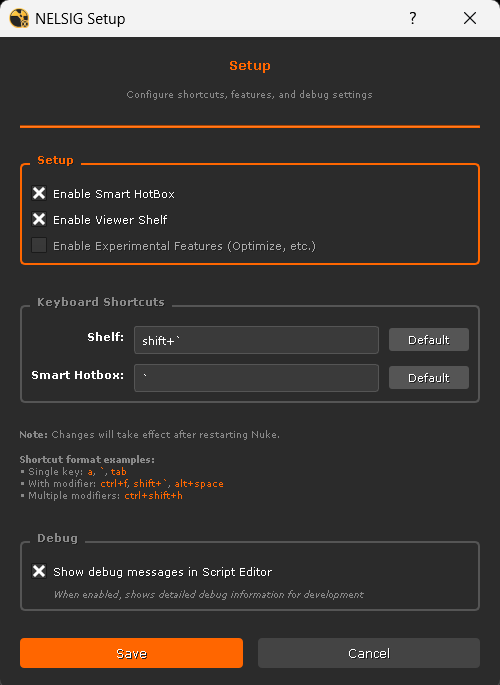

Default Keyboard Shortcuts

These shortcuts are registered automatically on startup:

Additional shortcuts are listed on each tool's documentation page.

Troubleshooting

Icons not showing on Linux

Some Linux distributions do not include SVG rendering libraries by default. If toolbar icons appear blank, install the required packages:

# Debian / Ubuntu
sudo apt install librsvg2-common

# CentOS / RHEL
sudo yum install librsvg2

No NELSIG menu after restart

• Check that menu.py is in the root of your .nuke directory, not inside a subfolder.
• Verify the menu.py snippet matches the one shown in Step 2 above.
• Open the Script Editor and look for any error messages during startup.

Folder structure check

The most common issue is placing the files at the wrong depth. Make sure the path is:

.nuke/node_graph_tools/ngt_init.py   ← correct
.nuke/node_graph_tools/node_graph_tools/ngt_init.py   ← wrong (nested too deep)

General issues

• Set the environment variable NELSIG_DEBUG=1 before launching Nuke to enable verbose logging in the Script Editor.
• If a specific tool fails to load, the rest of the toolkit will still work — check the Script Editor for the specific error.
